Console

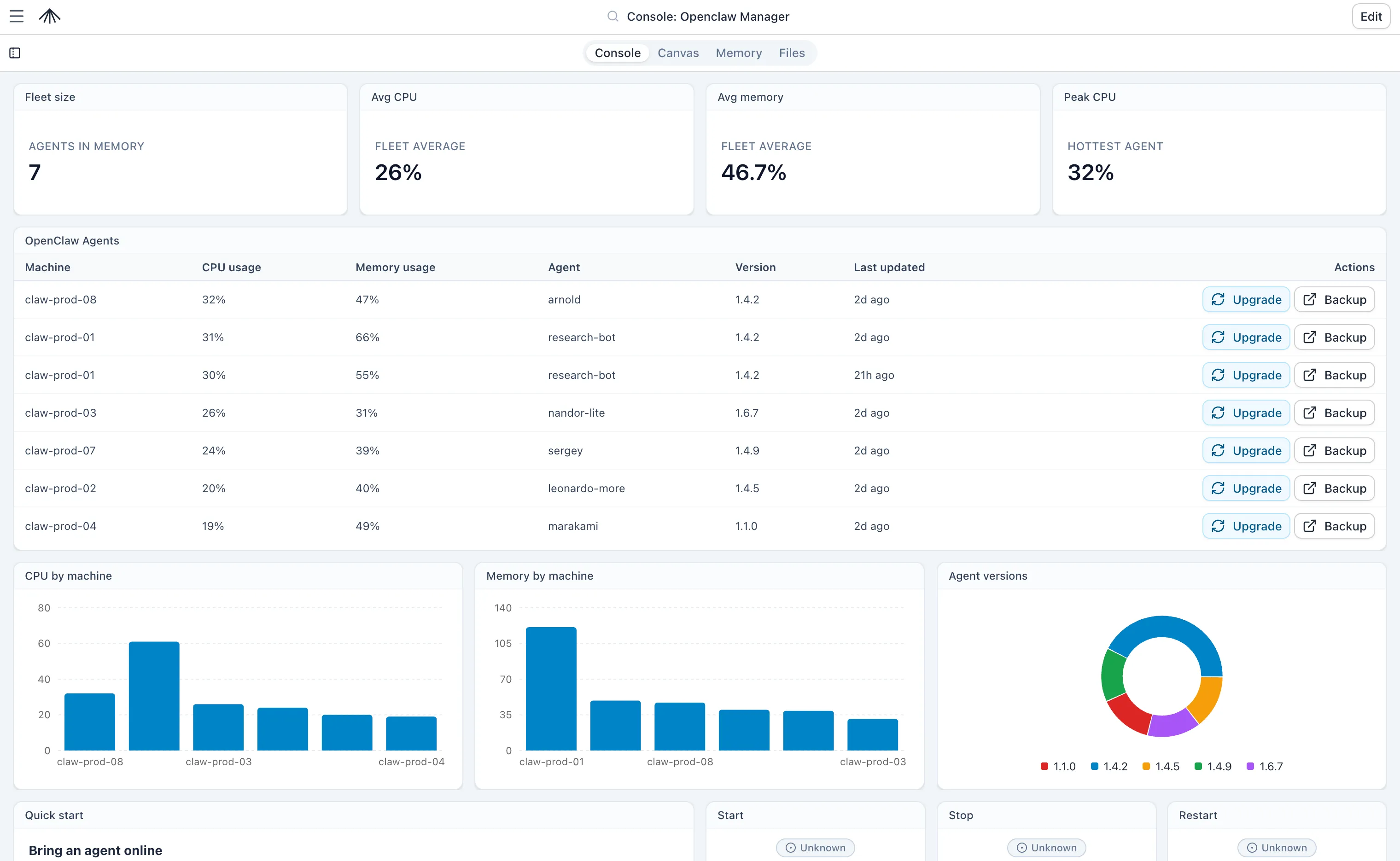

The console is the per-app operational surface. It turns workflow state into an at-a-glance view: notes and runbooks, pinned nodes, tables of live data, KPIs, and charts. Every app has one console, configured from the UI or from console.yaml in the app’s git repository.

When to use a console

The canvas shows the graph of nodes and connections — it’s where you design workflows and debug a specific run. The console answers a different question: what is the state of this system right now?

Reach for a console when you want:

• Release dashboards — current build, last deploy, error rate, and a Run button to promote.
• Preview environments — one row per open pull request, with health status and a Destroy action.
• Incident views — open incidents, active responders, recent runbooks, links to related tools.
• Operational status surfaces — anything where the day-to-day reader cares about outcomes, not topology.

A console belongs to one canvas. Templates do not have editable consoles.

How it works

A console is a 12-column draggable grid. Each cell holds a panel (also called a widget) — Markdown notes, pinned nodes, tables, charts, KPIs, or custom HTML. Panels read live data from canvas memory, executions, or runs, and re-render as new data lands.

Open the console from the app header (alongside Canvas, Memory, and Files). The canvas graph is hidden while console mode is active, and the panel grid takes over the main area.

Editing the console

Click Edit in the top-right of the console to enter edit mode. In edit mode you can:

• Add panels from the panel picker.
• Move and resize panels by dragging their header or bottom-right corner.
• Configure a panel by clicking its edit icon — each panel type has its own form.
• Delete panels.
• Import / export the console as YAML.

Changes follow the same draft and publish flow as the canvas: edits stay in your draft until you publish them. See Files for the underlying YAML and how it relates to canvas versioning.

Permissions

Action	Required permission
View the console and export YAML	Canvas read access
Add, move, resize, edit, or delete panels	canvases:update
Import YAML	canvases:update
Run a node from a node panel or table row action	canvases:update

Read-only viewers see the console and can export the YAML, but the Edit button and any runtime Run buttons are disabled with a tooltip explaining why. Server-side authorization is the source of truth — UI state mirrors it.

Panel types at a glance

The console ships with seven panel types. See Widgets for the full reference.

Panel	Purpose
Markdown	Notes, runbooks, and status copy with GitHub-flavored markdown and live variables.
HTML	Custom HTML with scoped <style> blocks and a Tailwind utility safelist.
Node	Pin one canvas node with live status and an optional Run button.
Key Nodes	Pin several nodes in one card with short purpose lines.
Table	Render rows from memory, executions, or runs, with filters and row actions.
Chart	Bar, stacked-bar, line, area, or donut chart over the same data sources.
Number	One KPI, several KPIs side-by-side, or an aggregate combined across namespaces.

Tables, charts, and numbers all draw from the same three data sources: memory, executions, and runs.

console.yaml

Every console is stored as YAML. You can edit it from the UI, or from the Files tab as console.yaml in the app’s git repository. The canonical shape is:

apiVersion: v1
kind: Console
metadata:
  canvasId: 00000000-0000-0000-0000-000000000000
  name: Example canvas
spec:
  panels:
    - id: envs
      type: table
      content:
        dataSource:
          kind: memory
          namespace: environments
        render:
          kind: table
          columns:
            - field: service
              label: Service
  layout:
    - i: envs
      x: 0
      y: 0
      w: 12
      h: 6

Two top-level lists drive everything:

• spec.panels[] — the panel definitions. Each panel has an id, a type, and a typed content object. Panel types and their content shapes are documented in Widgets.
• spec.layout[] — the grid placement for each panel. The i field references a panel id; x and y are column/row positions, w and h are the width and height in grid units.

Rules

• apiVersion must be v1.
• kind must be Console.
• Unknown top-level, metadata, panel, or layout fields are rejected.
• metadata.canvasId and metadata.name are informational on export.
• Missing spec.panels or spec.layout means an empty list.
• Maximum panel count is 50.
• Maximum panel payload size is 1 MiB.

Importing and exporting

Export is available to everyone with read access — open Edit mode and use the YAML modal, or pull the file from the Files tab.

Import is replace-all. When you import a YAML file, every panel and every layout item is replaced in a single update. There is no merge, no patch, and no per-panel import.

Bundling a console with an installable app

Apps installed from a public GitHub repository can ship an optional console.yaml alongside canvas.yaml. When present, the install flow reads both files from the same ref and writes the console into the new canvas.

• The file lives at console.yaml in the repo root, on the same branch as canvas.yaml (typically main or master).
• It uses the same apiVersion: v1, kind: Console shape documented above.
• A malformed file aborts the install before any canvas is created — fix the YAML and re-run install.
• A missing file is fine. The new canvas starts with an empty console you can fill in later.
• metadata.canvasId is ignored on install. The panels and layout become the new canvas’s full console.

Where to go next

• Widgets — every panel type, its configuration fields, and a YAML example.
• Data sources — memory, executions, and runs, plus the markdown / HTML variable system.
• Expressions & CEL — how console expressions differ from canvas Expr, with the full CEL builtins catalog.
